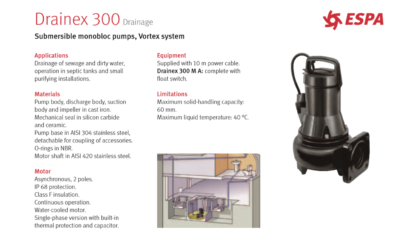

ESPA: Drainex 300/301/302 Drainage – Submersible monobloc Vortex Pumping Systems UK
Submersible monobloc pumps, Vortex system.
Applications
Drainage of sewage and dirty water, operation in septic tanks and small purifying installations.
Materials
Pump body, discharge body, suction body and impeller in cast iron.
Mechanical seal in silicon carbide and ceramic.
Pump base in AISI 304 stainless steel, detachable for coupling of accessories.
O-rings in NBR.
Motor shaft in AISI 420 stainless steel.
